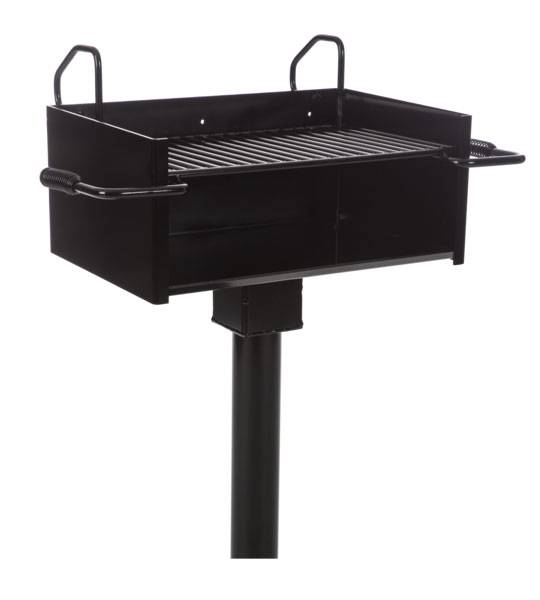

Fully Adjustable Large Park Grill with Tilt Back Grate, 334 Sq. Inch - Pad and Inground Mount

SKU: JTA 13813

Commercial or business inquiries only.

334 Total square inch cooking surface. 90 Lbs.

Firebox size: 23 3/4"L x 16"D x 10 1/8"H.

Inground mount post is 3 1/2" dia. x 40" in length.

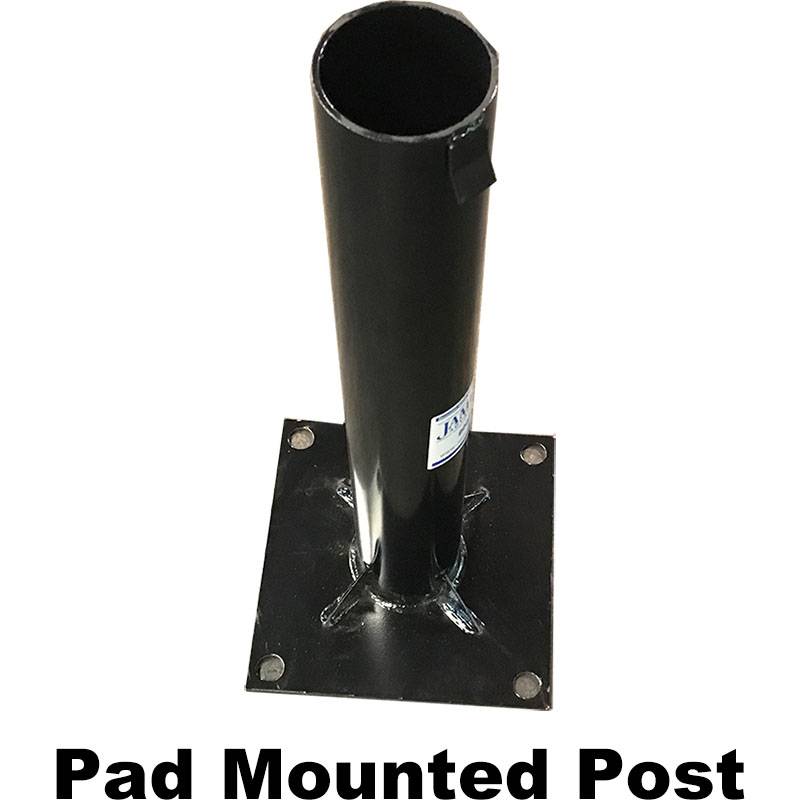

Pad mounted post is 3 1/2" dia. x 24" in length. Post mounting plate is 3/16" thick x 10" x 10" and has four holes located on 8 1/2" centers.

Constructed of 3/16" thick steel (A1011) with an integral ash retention flange and drain holes.

Grate is constructed from 1/2" dia. A36 steel bars located on 1 1/8" centers.

The four position theft proof grate adjusts from 3 1/2" to 9" above the firebed.

Grate handles are constructed from 5/8" dia. A36 steel bars equipped with stay cool spring grips suitable for public use.

The fully adjustable theft proof grate tilts back for easy cleaning.

Optional back shelf available.

A theft proof base allows the grill to attach to the pipe and to rotate a full 360 degrees.

Grill design allows grate to lift up and tilt back for ease of cleaning.

All joints are continuously welded.

All exposed corners are chamfered for safety.

Standard finish is a non-toxic black powder coat.

Some assembly required.

Add items to cart for quote. Contact us for volume discounts.

Shipping: Please add products to the cart and your customized quote will be emailed to you shortly with lead times to ship and freight/shipping charges.

Pricing: $319.00

Description
Details
Shipping
Documents
Reviews

Description

Our Fully Adjustable Standard Grill has all of the features of a standard grill including a 180-degree tilt-back grate for ease of cleaning. With this Fully Adjustable Large Park Grill with Tilt Back Grate, 334 Sq. Inch - Inground Mount, the height of the cooking surface from the heat source is stationary.

Details

SKU: JTA 13813
Item #: JTA 13813
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Shipping Remarks: Please add products to the cart and your customized quote will be emailed to you shortly with lead times to ship and freight/shipping charges.
